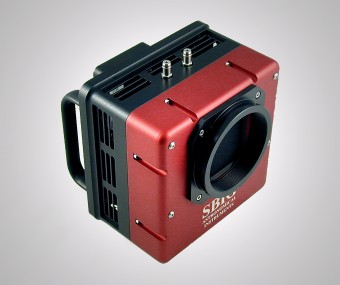

Sbig STXL-11002 Class1, CCD kamera s čipem třídy 1.

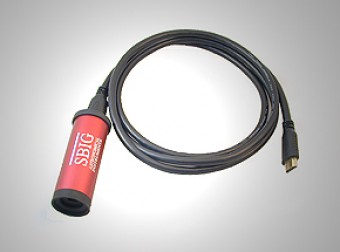

K dispozici je také nová autonaváděcí kamera STT/STXL/STX Remote Guide Head s připojovacím konektorem HDMI. Lze ji využít jako externí navigační kameru pro SBIG série STT, STXL a STX a používat tak oddělené navigace s navigačním dalekohledem, nebo objektivy, nebo s OAG. Externí pointační kamera (Remote Guide Head (RGH)) obsahuje stejný jednobarevný čip CCD KAI-0340, který je používaný v samo naváděcích filtrových karuselech pro STT a STXL kamery a duplikátní vnitřní navigaci v kameře STX. Stejný čip CCD je používaný v ST-i pointační a planetární kameře.

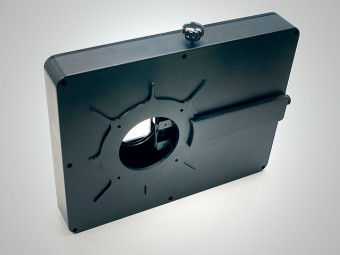

Pro pointaci lze také použít filtrový karusel FW8G-STXL se samonaváděním, který zahrnuje čočkový telekompressor a naváděcí CCD čip KAI-0340, a to dovolí nastavení na požadovanou filtrovou pozici a ohniska se zajištěním polohy zaostření uzamčením. Umožňuje tak pointaci se snímáním světla hvězd mimo filtry při astrofotografii.
Typical Specifications
Imaging CCD...........................................................................Truesense KAI-11002M
Imaging/Pixel Array.................................................................4008 x 2672 pixels @ 9u
CCD Size................................................................................................36 x 24.7 mm
Total Pixels..................................................................................................11 Million
Pixel Size................................................................................................9 x 9 microns
Full Well Capacity..........................................................................................60,000 e-
Dark Current e/p/s at 0 C.............................................................0.5e-/pixel/sec at -15C
Antiblooming.........................................................................................................Yes
Peak QE..............................................................................................................50%
Shutter...........................................................................Mechanical, Even-illumination
Exposure..........................................................................0.001 to 3600 seconds, 10ms
Correlated Double Sampling...................................................................................Yes
A/D Converter...............................................................................................16 bitA/D Gain.........................................................................................................0.87e-/ADU
Read Noise....................................................................................................11e- rms
Binning Modes..........................................................................1x1, 2x2, 3x3, 9x9, x n
Pixel Digitization Rate..............................................................1.8 Megapixels / Second
Full Frame Download.................................................................................6.3 Seconds
Focus Mode.................................................................................................~1 second
Cooling Delta....................................................................................-60C with air only
Temperature Regulation.....................................................................................±0.1°C
Power.......................................................................................12VDC at 6 amps max
Computer Interface.....................................................................USB 2.0 and Ethernet
Computer Compatibility.................................................................Windows 32 / 64 bit
Dimensions............................................6 x 6 x 3.5 in. Excluding fan 152 x 152 x 76mm
Mounting..........................................................................3" Threaded Accessory Plate
Weight................................................................................................4.5 pounds / 2kg
Backfocus...................................................................................0.98 inches / 24.8 mm
Filter Wheel Option..................................................................................FW8S-STXL
Self-Guiding Filter Wheel...................................................................FW8G-STXLFilter Size..........................................................................................................50mm round
Adaptive Optics Option.......................................................................................AO-X
Remote Guide Head......................................................................................RGH-STT
Lens Adapter................................................................................Nikon or Canon EOS
OAG Option...........................................................................................................n/a
