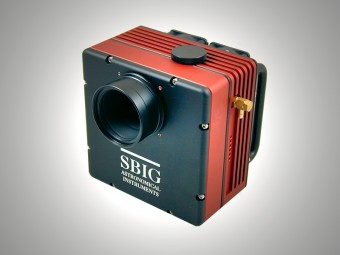

SBIG STT-1603ME, CCD kamera
Typical Specifications
Imaging CCD.........................................................................Kodak KAF-1603ME
Imaging/Pixel Array...........................................................1536 x 1024 pixels @ 9u
br>CCD Size....................................................................................13.8 x 9.2 mm
Total Pixels............................................................................................1.6 Million
Pixel Size...........................................................................................9 x 9 microns
Full Well Capacity...................................................................................100,000 e-
Dark Current e/p/s at 0 C......................................................0.1e-/pixel/sec at -20°C
Antiblooming........................................................................................NABG Only
Peak QE............................................................................~80% Peak, ~75% at H-a
Shutter.........................................................................Mechanical, Even-illumination
Exposure........................................................................0.12 to 3600 seconds, 10ms
Correlated DoubleSampling.................................................................................Yes
A/D Converter............................................................................................16 bitA/D Gain..........................................................................................................2.3e-/ADU
Read Noise.................................................................................................~15e- rms
Binning Modes.........................................................................1x1, 2x2, 3x3, 9x9, x n
Pixel Digitization Rate..............................................................10 Megapixels / Second
Full Frame Download.................................................................. ..Less than 1 second
Focus Mode...................................................................................Less than 1 second
Cooling Delta.....................................................................................-55C with air only
Temperature Regulation.....................................................................................±0.1°C
Power....................................................................................12VDC at 3. 5 amps max
Computer Interface......................................................................USB 2.0 and Ethernet
Computer Compatibility........................Windows 32 / 64 bit Mac OSX 3rd party Linux
Dimensions......................................................4.9 x 4.9 x 2.9 in. 124 x 124 x 74mm
Mounting..................................................................................T-Thread, 2" nosepiece
Weight...........................................................................................2.7 pounds / 1.2kg
Backfocus..................................................................................0.69 inches / 17.5 mm
Filter Wheel Option....................................................................................FW8S-STT
Self-Guiding Filter Wheel............................................................................FW8G-STT
Filter Size..............................................................................................1.25" or 36mm
Adaptive Optics Option......................................................................................AO-8T
Remote Guide Head......................................................................................RGH-STT
Lens Adapter................................................................................Nikon or Canon EOS
OAG Option................................................................................................OAG-8300
