Sbig FW8G-STXL filtrový karusel 8 poziční s naváděcím sytémem před filtry, opakovaní filtrového umístění je lepší než 1 pixel. Filtrové kolo pro kruhové filtry 50mm bez objímky.
Filtrový karusel FW8G-STXL se samo naváděním zahrnuje čočkový telekompressor a naváděcí CCD čip KAI-0340, to dovolí nastavení na požadovanou filtrovou pozici a ohniska se zajištěním polohy zaostření uzamčením. Umožňuje tak pointaci se snímáním světla hvězd mimo filtry při astrofotografii.
Features
Self-Guiding in Front of the Filters

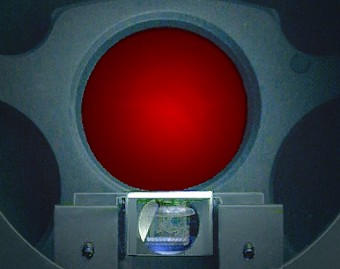

Self-guiding has long been acknowledged as the best, most accurate way to guide long exposure astrophotos, particularly with commercial SCTs. The single most common complaint however is finding bright stars when guiding through dark or narrowband filters. The STT filter wheel incorporates a KAI-0340 CCD with 640 x 480 pixels @ 7.4u inside the front cover of the filter wheel so that the guider picks off light from the guide stars before passing through the filters. This guiding CCD is the same sensor used in the ST-i autoguider. Moreover, the optical elements that transfer the light from the pick-off mirror to the CCD act as a 0.7X focal reducer, similar to the OAG-8300 configuration. The result is a doubling of the field of view of the guiding CCD with a correspondingly greater selection of guide stars.
There are two smaller adjustment knobs on the filter wheel base: one for focus and one for moving the pick-off mirror to avoid vignetting. A larger knob on the side of the filter wheel locks the adjustments in place once the best focus is achieved. A short cable is provided to connect the filter wheel guider to the remote guide head port on the camera. In the event that a Standard filter wheel cover is substituted for using Nikon or Canon EOS camera lens adapters, a remote guide head may be used for guiding instead of the built-in self-guiding CCD. The Standard and Self-Guiding Filter wheel covers are interchangeable.
Micron-Precision Filter Positioning

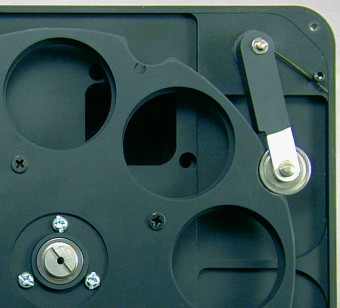

Both the Standard and Self-Guiding versions of the STXL filter wheels incorporate the same micron-precision filter positioning mechanism as the STT Series cameras. When taking flat field frames of filtered images, the flat field frame must show exactly the same optical characteristics to be the most effective. If there is dust on the filter, or uneven illumination caused by the filter, this must be represented precisely as seen in the light image to be corrected by the flat field frame. The STXL filter wheel is designed to provide a new level of accuracy when taking flats through filters by repositioning filters to within a few microns every time. This allows the imager to take extremely accurate flat field frames even after rotating the filter wheel several times, or even after a loss of power.

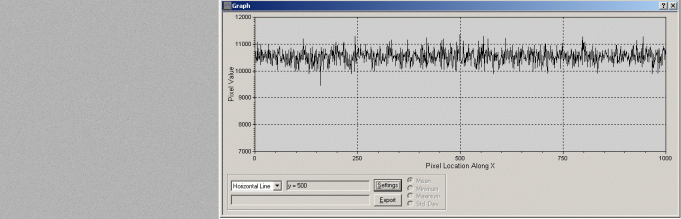

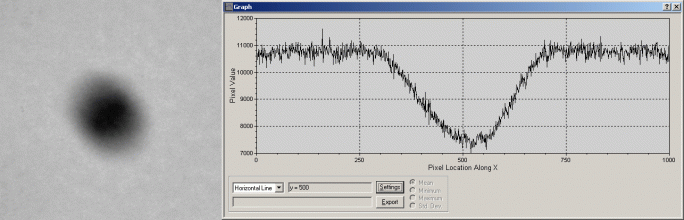

The light frame at top, taken with the new filter wheel design, shows a large opaque spot caused by debris intentionally stuck on a clear filter. The filter wheel was rotated several times, then the clear filter was re-positioned, and a flat field image was taken through the same dirty filter. The image at bottom left shows the result after applying the flat field image to the original light frame. We measured this positional accuracy to be better than 5.4 microns, or better than a single pixel using the STT-8300.
Poznámka: cena platí při dovozu s CCD kamerou.
